MagDeck Pro 11

Seven SKUs across iPad Pro, Air and entry tiers — one hinge architecture, one spare-parts list.

MagDeck Pro 11

MagDeck Pro 11

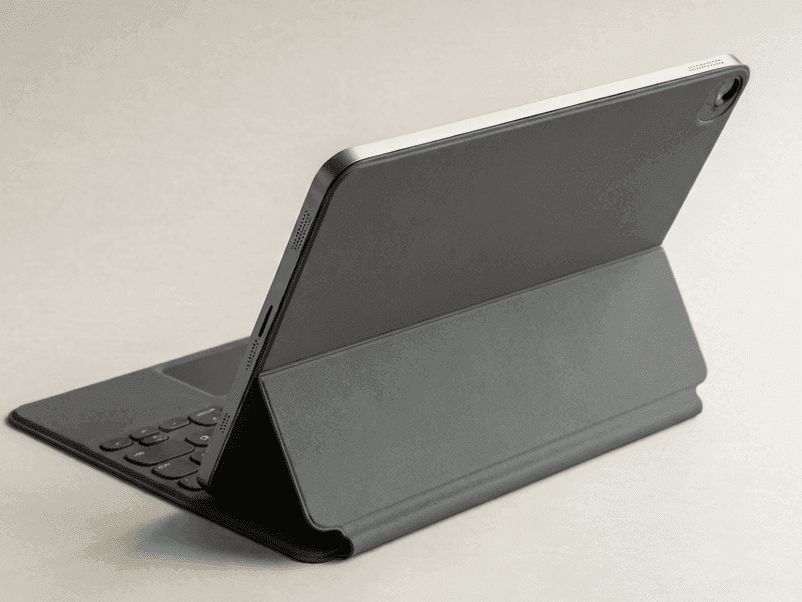

Magnetic keyboard case for iPad Pro 11″ — 1.0 mm scissor keys, glass trackpad and a 130° hinge, supplied as your own brand.

MagDeck Pro 11 is the volume model of the Pro family: a magnetic keyboard case built around the same hinge, key mechanism and firmware stack as the 13″ version, so a second size costs you a tooling change rather than a new project.

Specifications

CompatibilityiPad Pro 11″ (M4, 2024) and iPad Pro 11″ (M2, 2022) Keys78 keys, 1.0 mm travel, 60 g actuation TrackpadGlass multi-touch, 112 × 68 mm HingeMagnetic two-axis, 130° range, one-hand opening BacklightPer-key, 16 brightness steps Weight412 g without iPad FinishGraphite, silver, sand, midnight (custom Pantone from 1,000 units) MOQ200 units per colourway

What makes it production-ready

  • Scissor mechanism cycled to 20 million keystrokes per production batch

  • Hinge hold force tested over 15,000 open/close cycles

  • Powered from the Smart Connector — no separate charging cable

  • Palm rejection firmware tuned per iPad size class

  • Retail-ready packaging with your artwork, manual and barcode

Need the full drawing package, test reports and a pre-production sample? Our team replies within one working day.
